PZ pneumatic Piston Seal

Instruction

  Seals for Type PZ cylinder piston holes shall be applied to the cylinders and
valves.Two-acting cylinder seals have less friction.The low friction cylinder
seals have two miniature sealing edges with grease accumulated between them.
  —— installation groove is small, good sealing performance
  —— has the best sealing lip geometry, so the operation of smooth
  —— structure is small, so static, very low dynamic friction
  —— suitable for dry air and oil-free air.Initial lubrication during assembly
         is crucial for the long working life.
  —— easily fit into the sealing groove

Working condition

  Operating pressure: ≤ 12MPa
  Operating temperature: -20~100℃
  Standard material: Ding gel surface
  speed: ≤ 1m/s
  medium: oil lubricated air, dry and oil free air (after initial assembly)

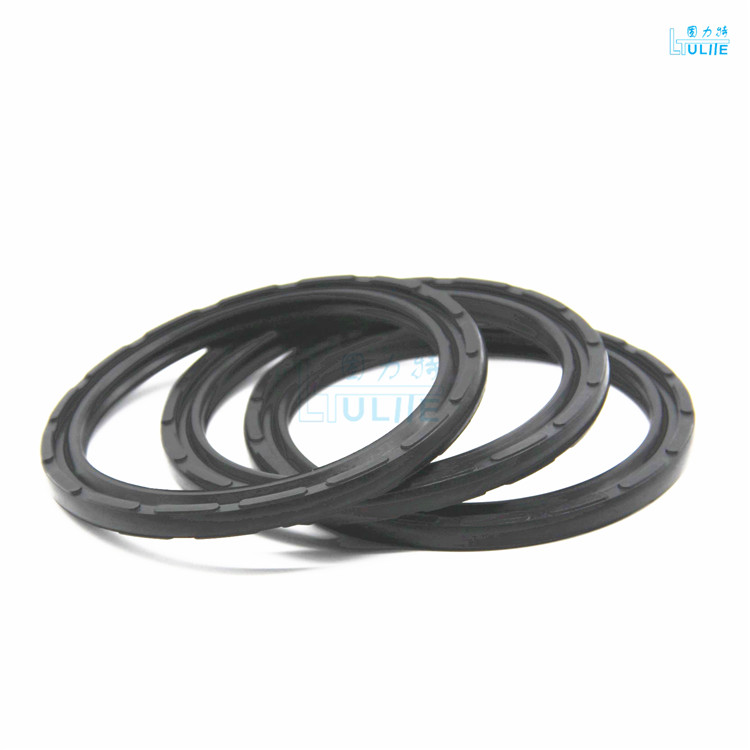

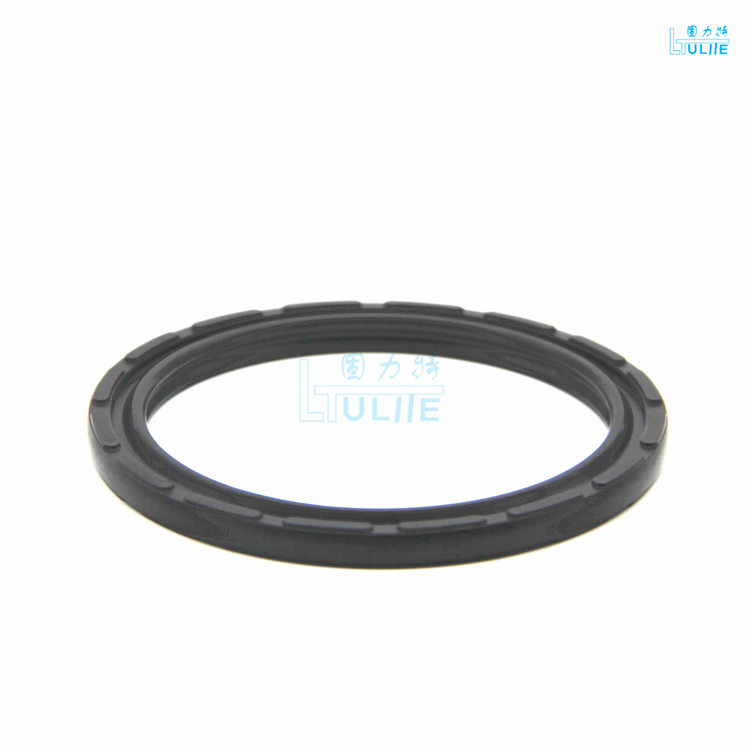

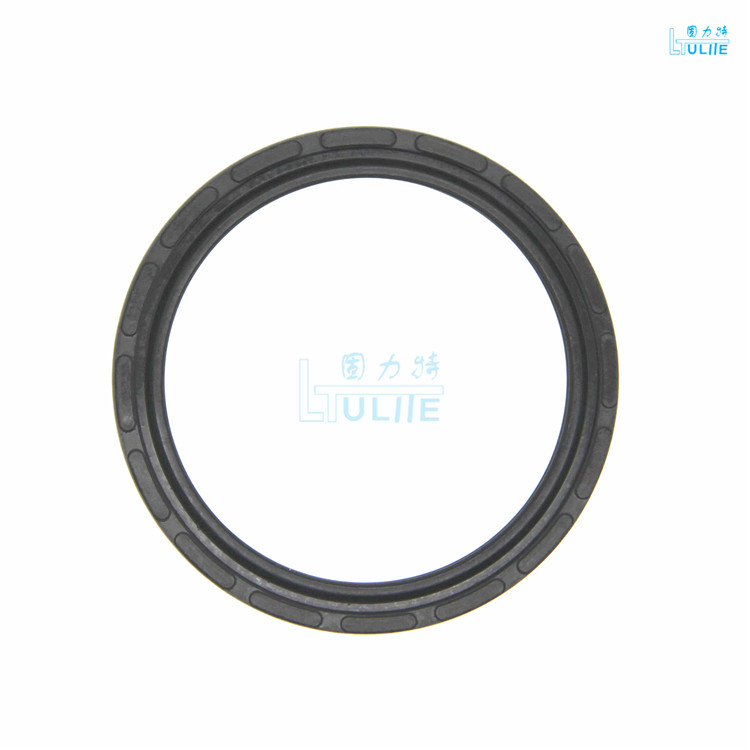

Product photos

Product specification
