V-type cloth clip combination sealing ring

Instruction

V-type cloth clip combination sealing ring:

excellent sealing performance, high working life, dynamic pressure sealing working
life is 510 times higher than conventional rubber sealing products, up to dozens of
times, in some conditions can be the same life with the sealing base.Small frictional
resistance, dynamic, static friction is equal.It is "1 / 2-1 / 4 of the O" -shaped rubberring
friction, which can eliminate the "crawling" phenomenon of movement at low speed
and low pressure.High wear resistant, automatic elastic compensation after worn sealing
surface.Good self-lubricating performance. Make an oil-free lubrication seal.Simple in
structure and easy to install.

Working condition

Operating pressure: ≤ 40Mpa
Movement speed: ≤ 3m/s
Operating temperature: -40℃ - + 120℃ (material NBR);
                                          -40℃ - + 170℃ (Material HNBR);
                                          -30℃ - + 200℃ (of Material FKM or VITON)
Can be used for: large, heavy load, hydraulic impact, and high and low-pressure sealing

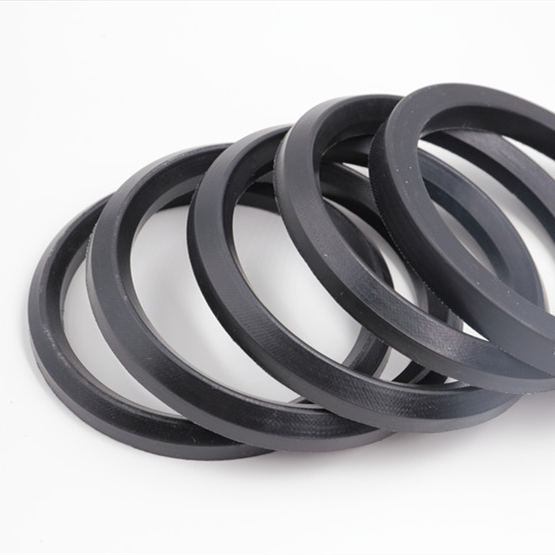

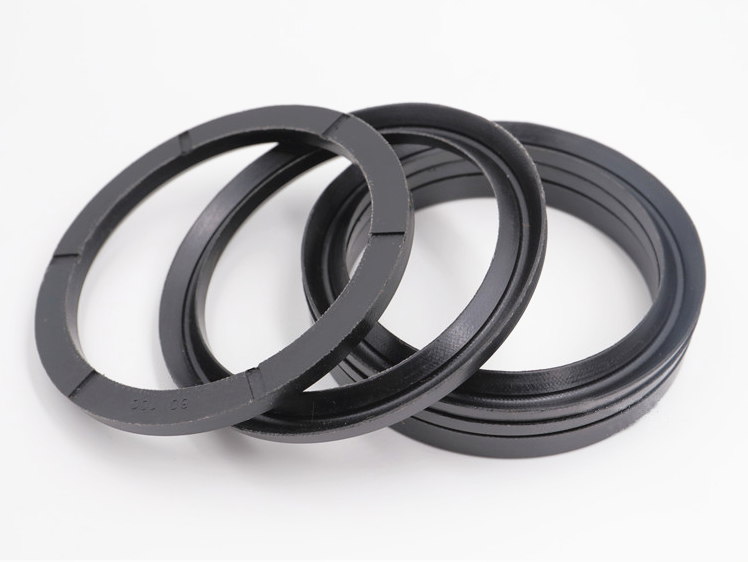

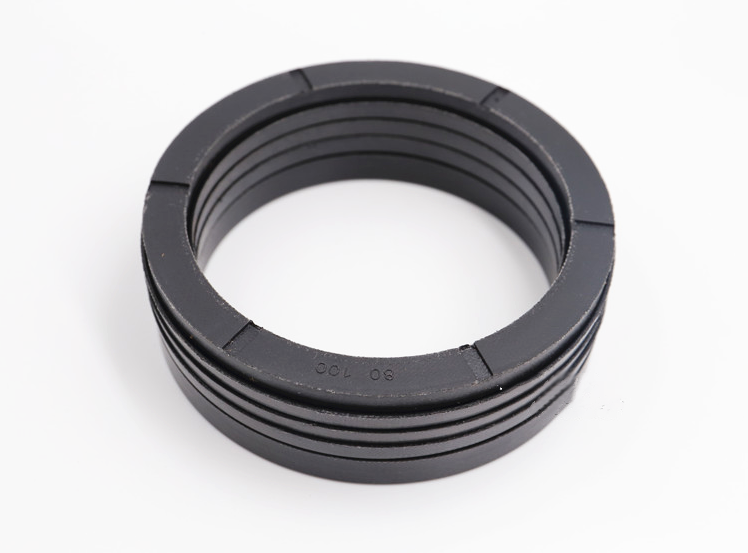

Product photos

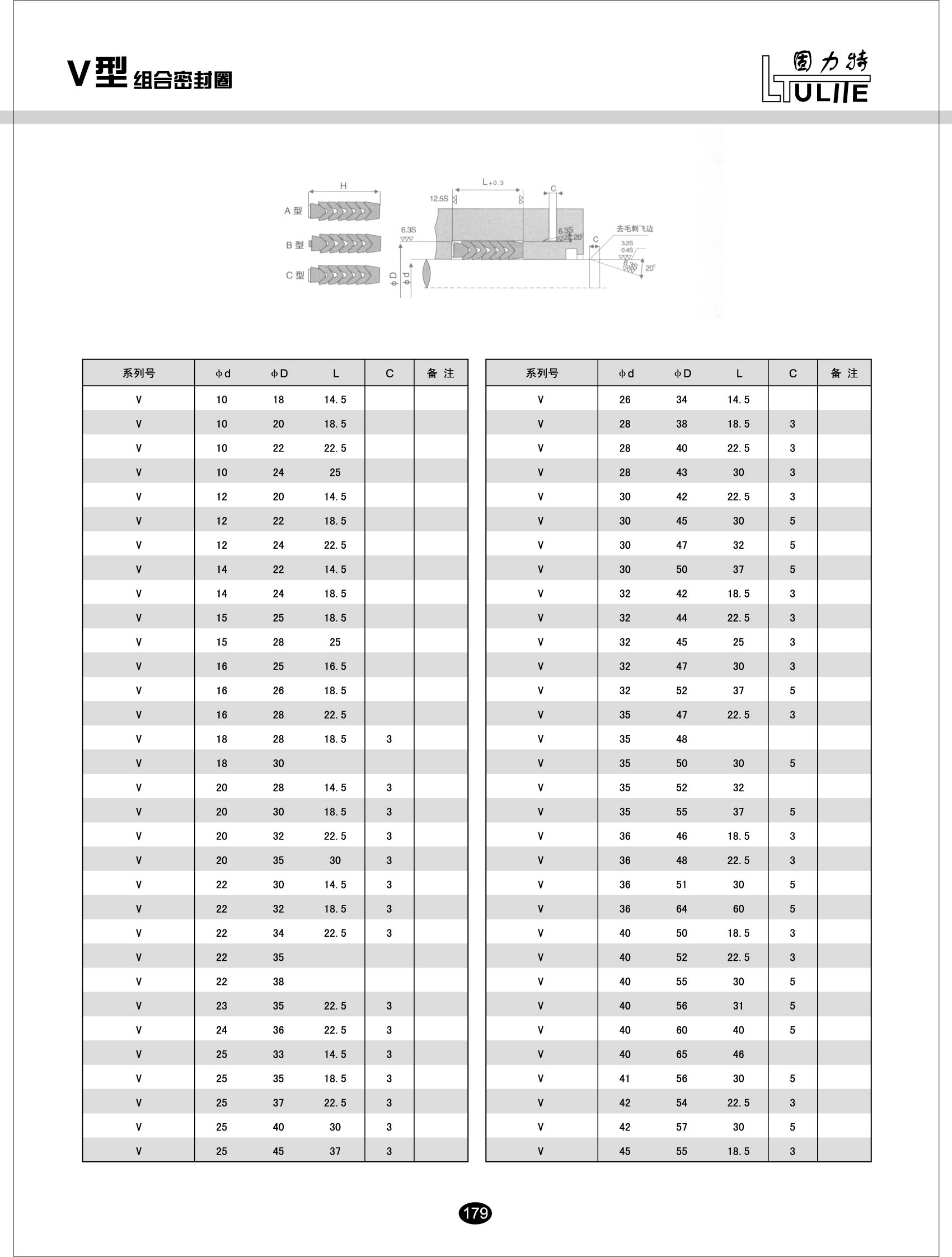

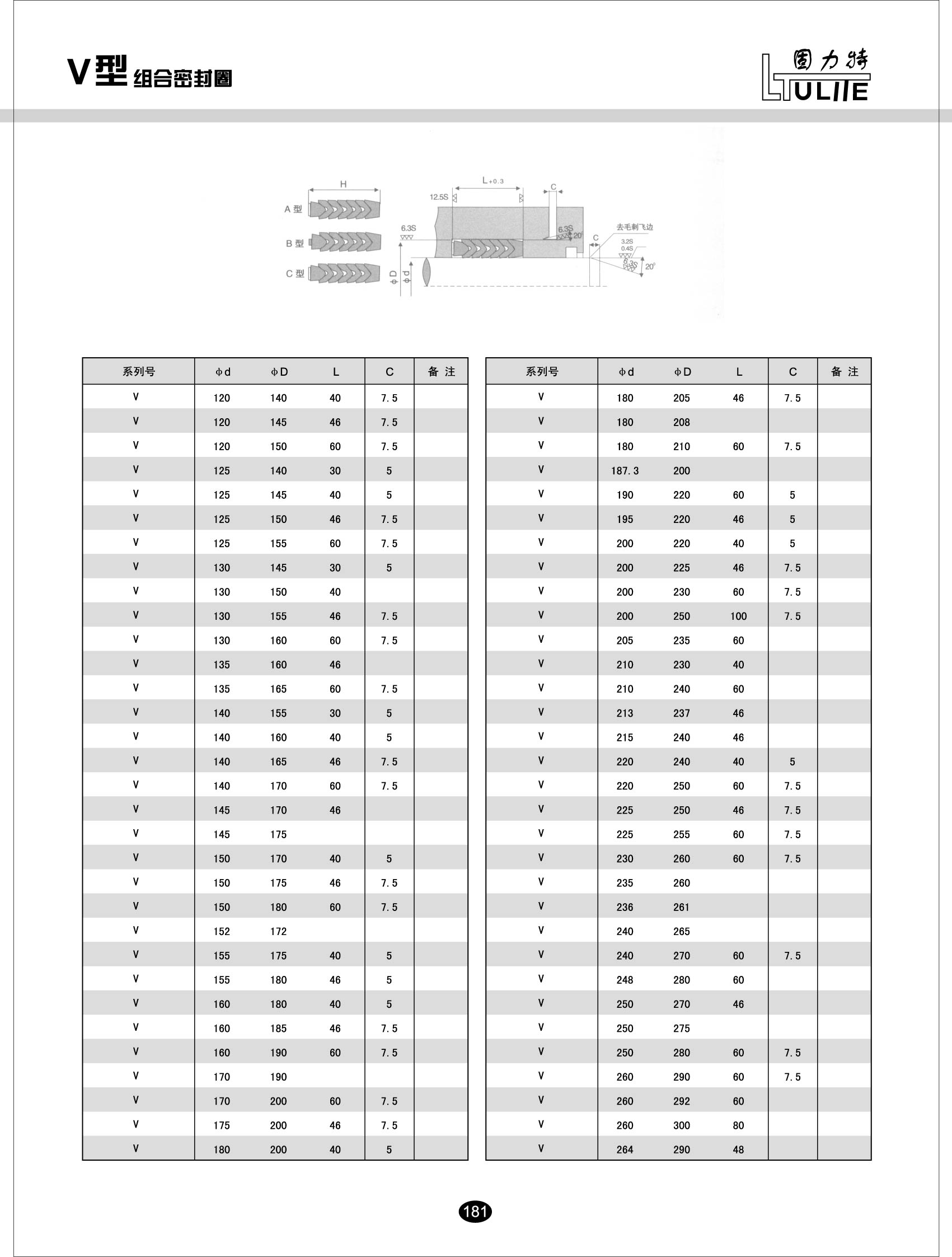

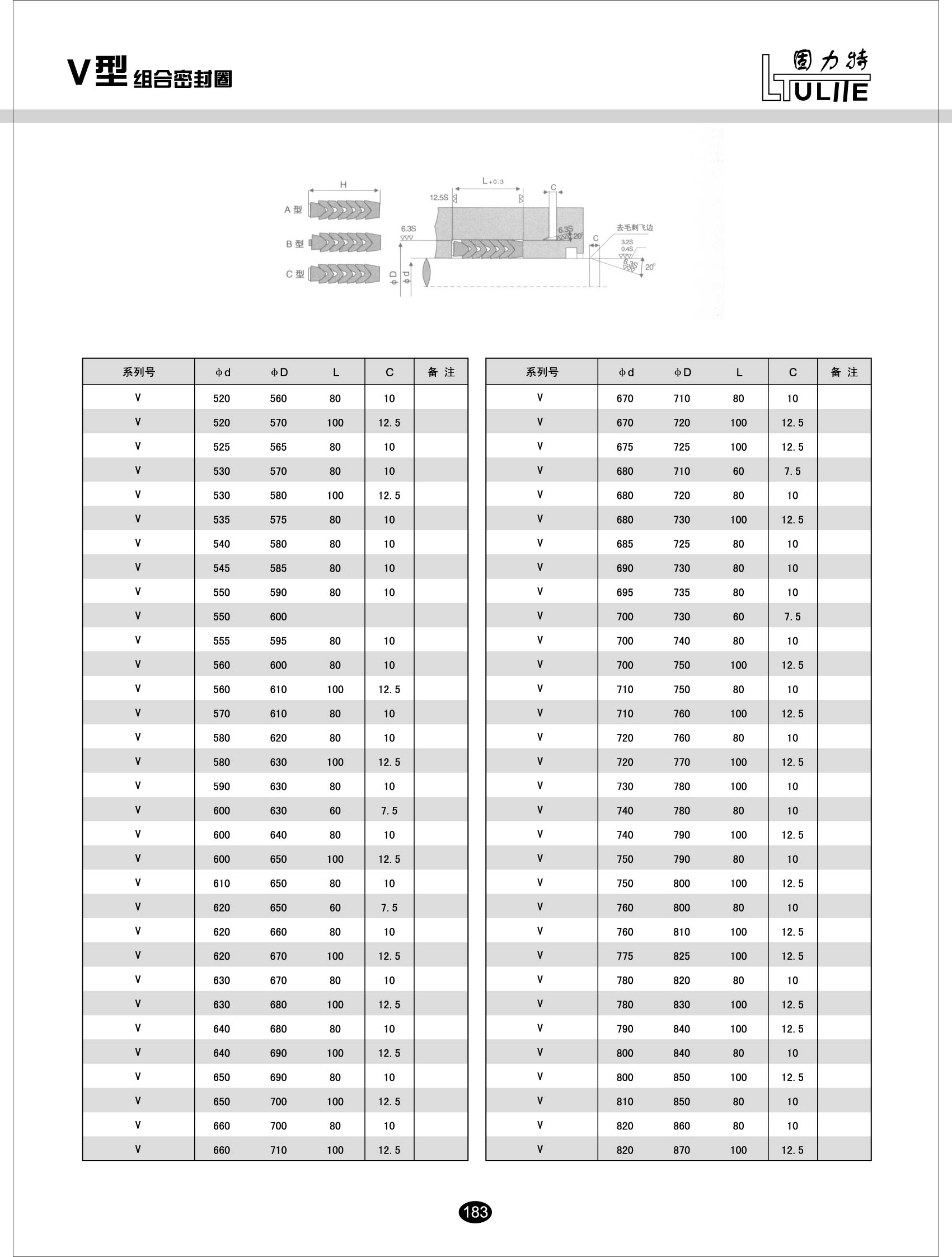

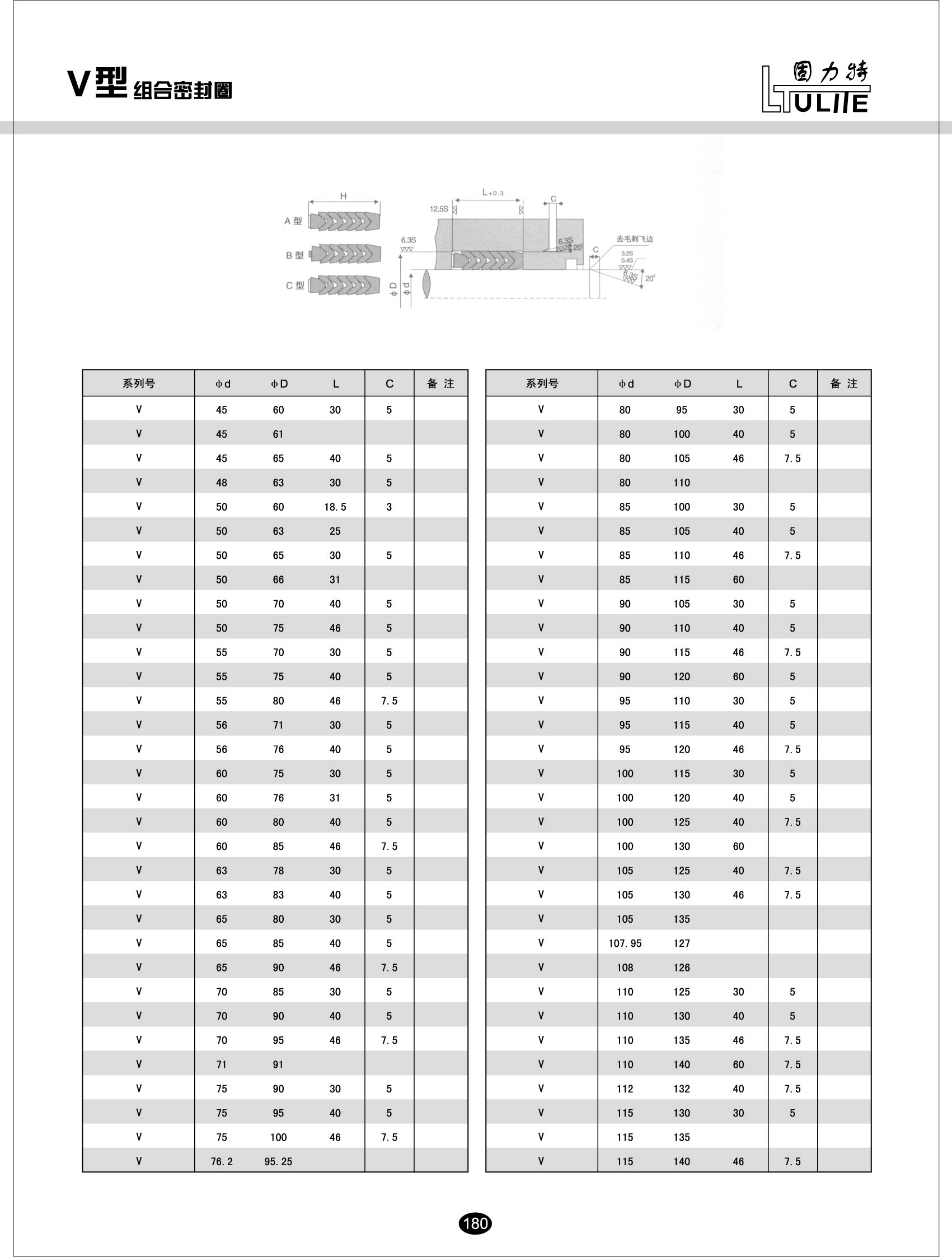

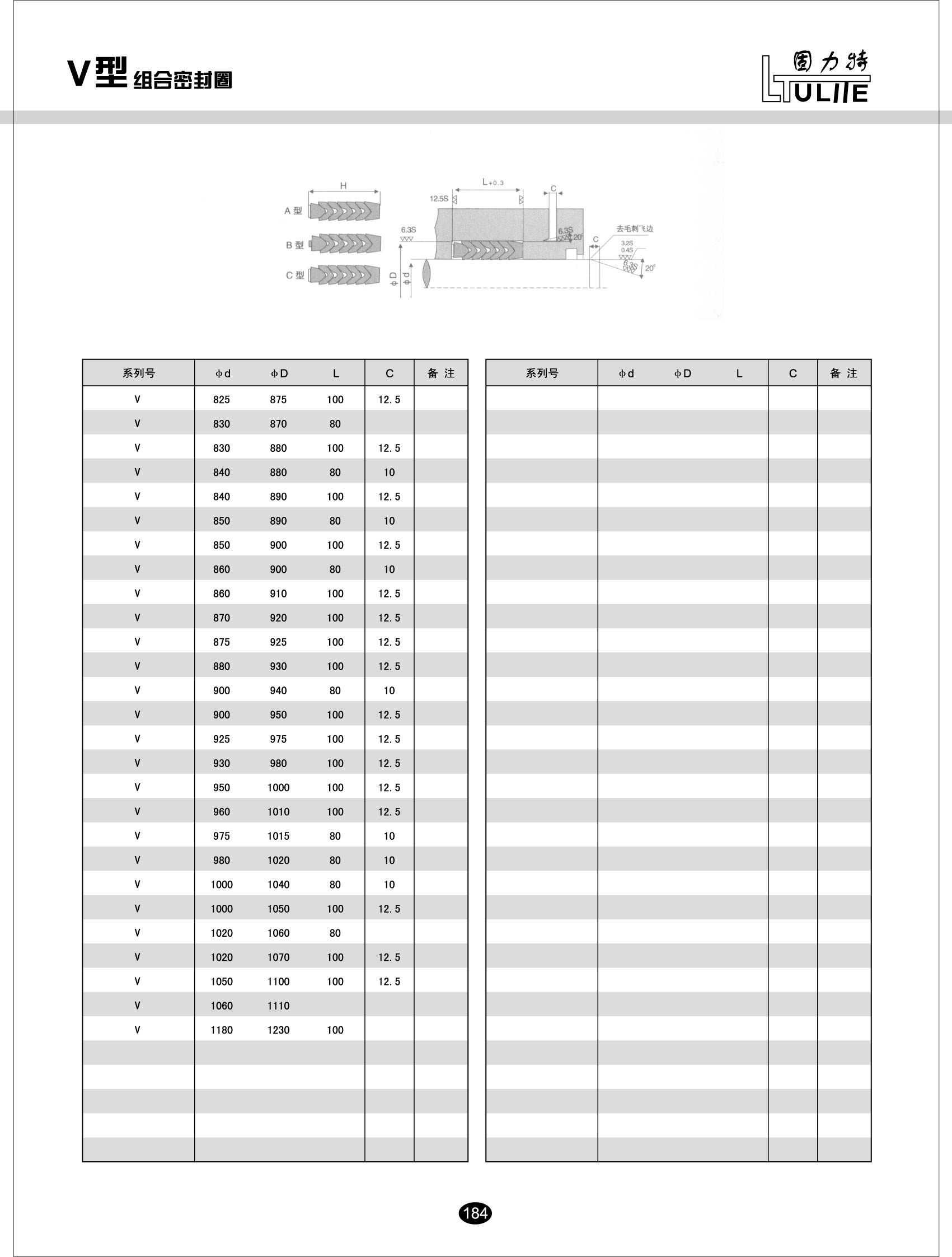

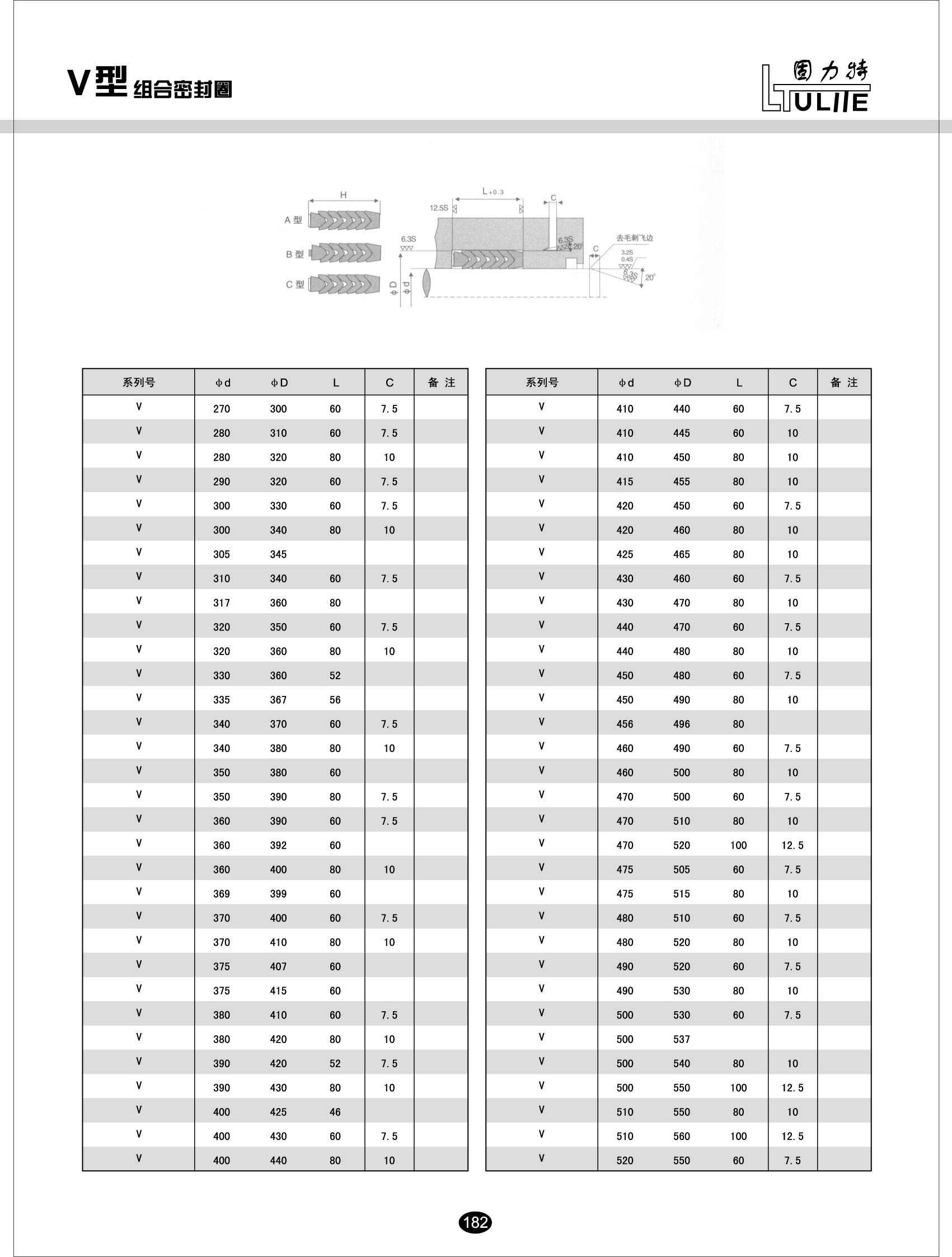

Product specification
