GP pneumatic Piston Seal

Instruction

   GP model seals are standard cylinder piston seals due to the special structural
design of its outer lip,So that it can well maintain the initial lubrication, coupled
with the special oak and plastic compliance material, so there is a comparison
Good wear resistance, this model has a very good effect on the pneumatic seal.

Working condition

Product use:sealing ring for reciprocating holes in pneumatic cylinders

Operating medium: oil-lubricating air and dry air and oil-free air

Working pressure:≤ 16bar

Operating temperature: -20℃ + 100℃

Surface speed:≤ 1m/s

Material: nititrile rubber (NBR), hardness Shaw A75± 5

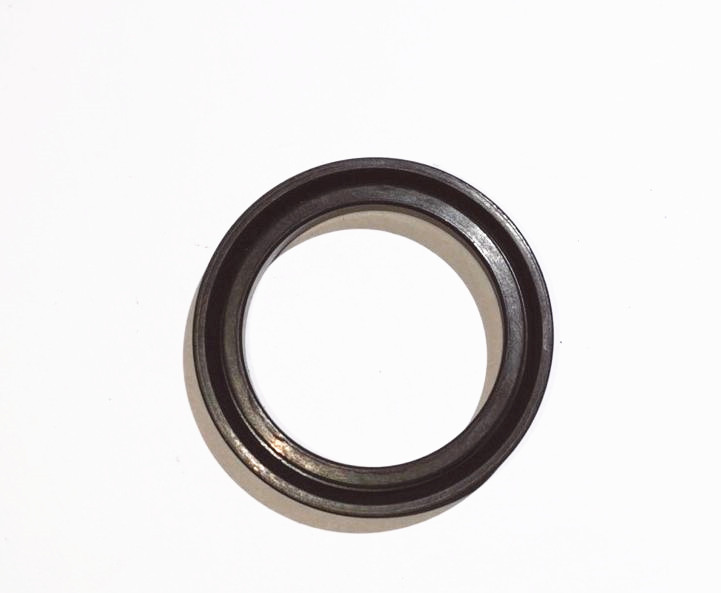

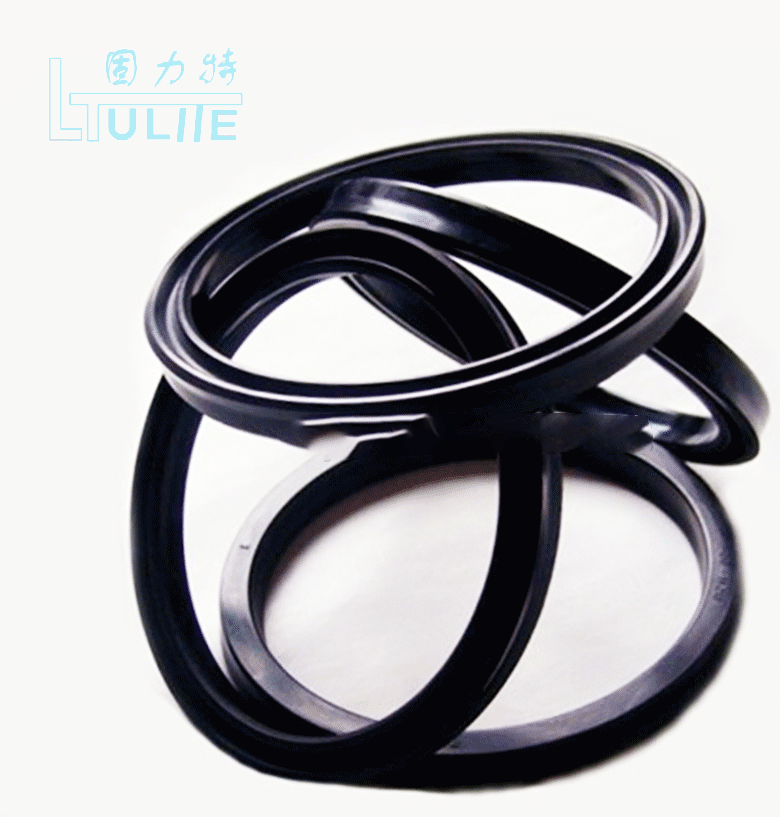

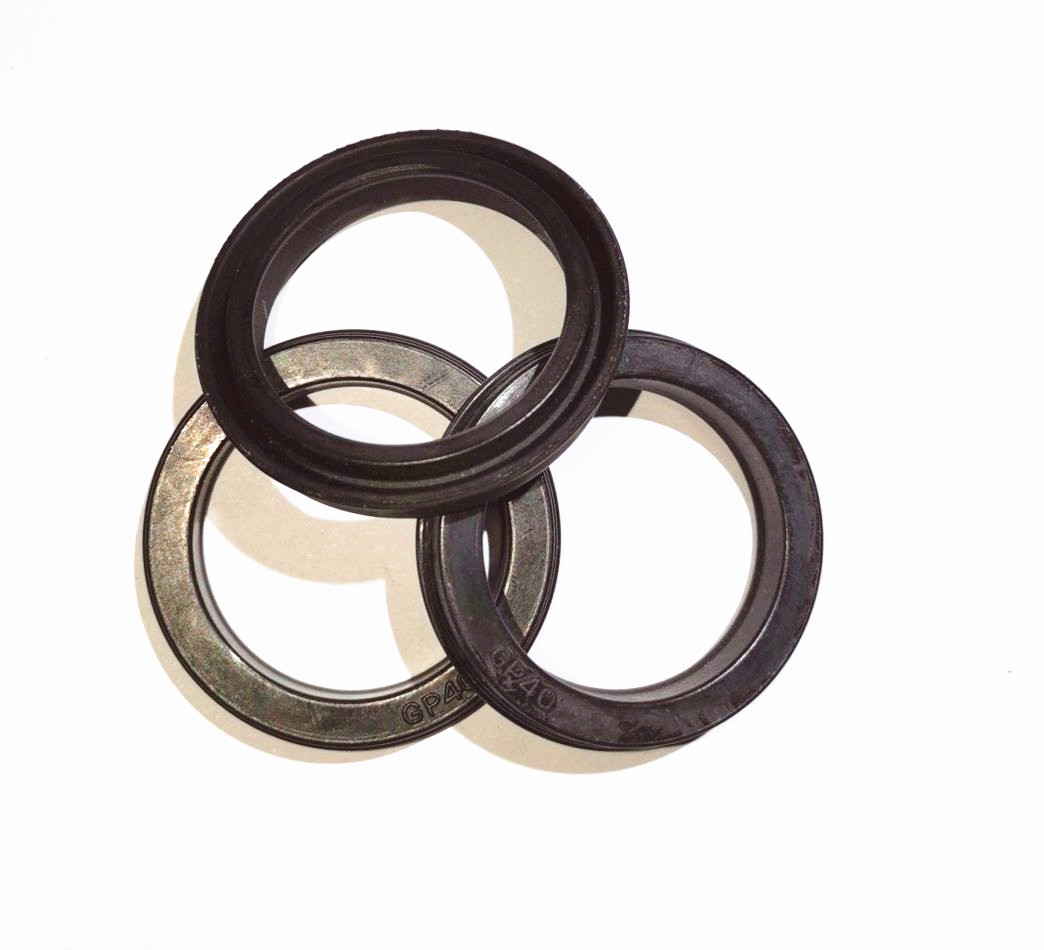

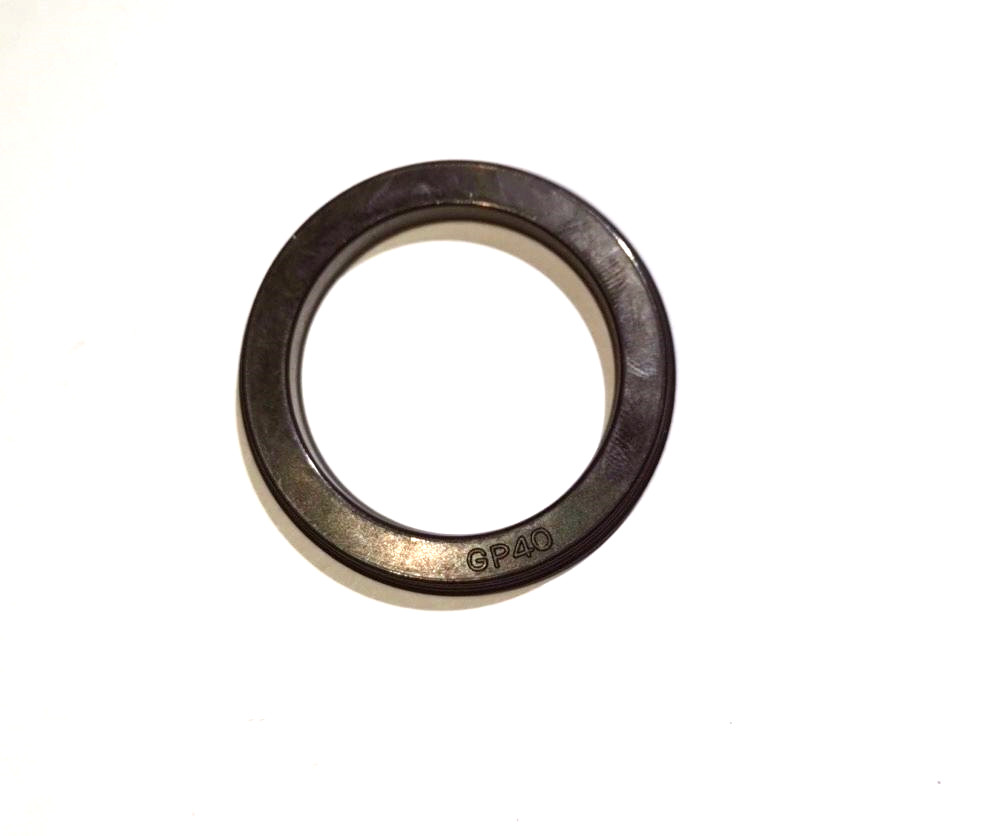

Product photos

Material characteristics and selection

Product specification
