The Plug Seal

Instruction

  The plug seal can be made according to AS 568A standard O-ring groove (
such as radial axial seal, piston seal, axial surface seal, etc.) to completely
replace the universal O-ring. Due to no bentoniness, good sealing performance
can be maintained for a long time.For example, for mechanical shaft sealing
used in petrochemical high-temperature corrosion environment, the most
common leakage reason is in addition to the uneven wear consumption of sliding
ring, the deterioration damage of O-shaped ring is also the main cause. After
the use of The plug seal, rubber softening, swelling, surface thickening and
abrasion can be completely improved, so the service life of mechanical shaft
sealing is greatly improved.The plug seal is all static and static. In addition to the
sealing application of the above high-temperature corrosion environment, due
to its low sealing lip friction coefficient (radial run-out), sealing contact pressure
stability,high pressure tolerance, it is very suitable for the seal of air oil cylinder,
replacingU-shaped or V-shaped pressing to obtain excellent sealing performance
and service life.

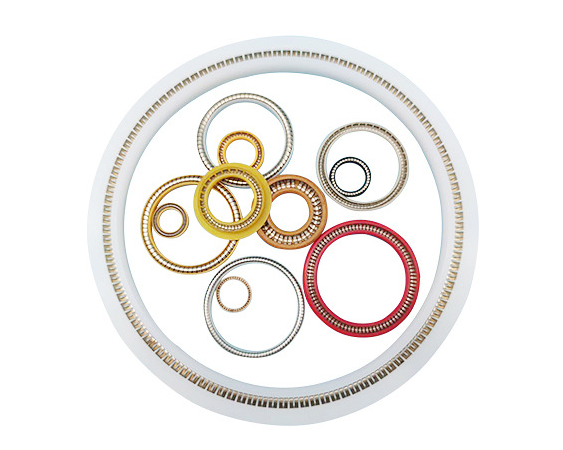

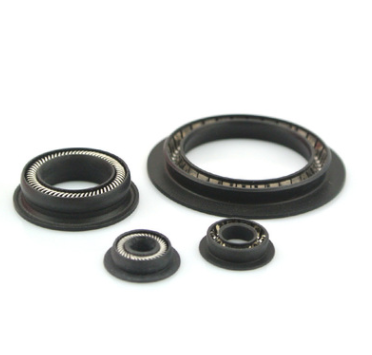

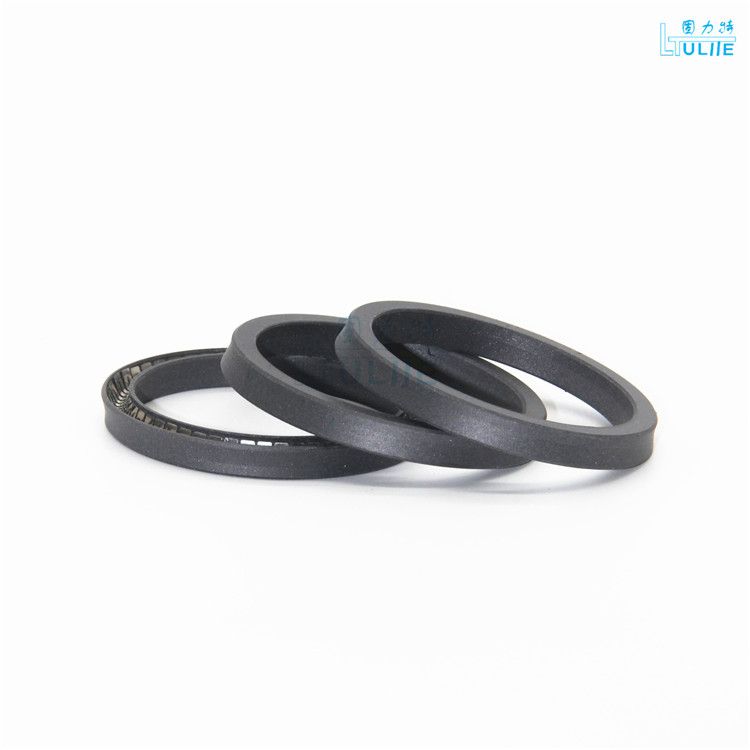

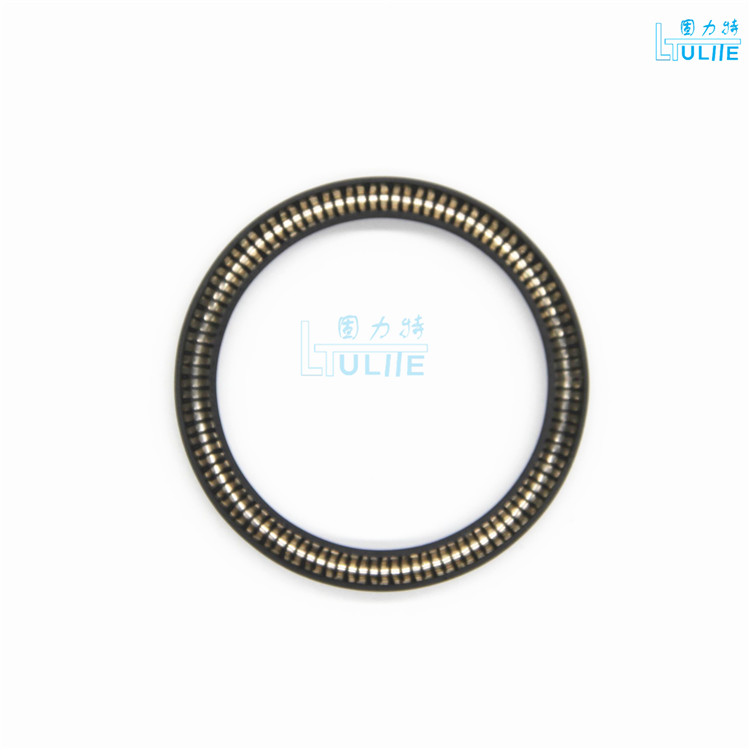

Product photos

Material characteristics and selection

  The plug seal is a special seal developed for the application environment
with high temperature corrosion, difficult lubrication and low friction, Different
combinations of ferrofluorlon composites, advanced engineering plastics and
corrosion-resistant metal springs, It can fully meet the increasingly stringent
industrial diversity needs, Typical applications such as 1, axial seal 2 for rotary
joint of loading arm, seals for spray valve or other spray system 3, seals for
vacuum pump 4, beverage, water, beer filling equipment (e. g. loading valve)
and industrial seals for food industry 5, seals for automobile and aerospace industry,
For example, power direction machine 6, seals for measuring equipment (low friction,
long life) 7, other process equipment or pressure vessels.

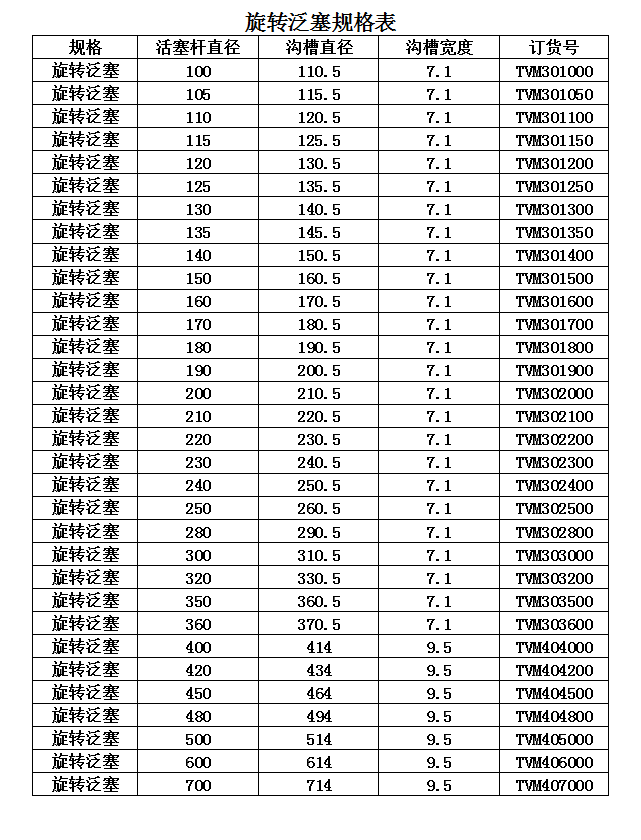

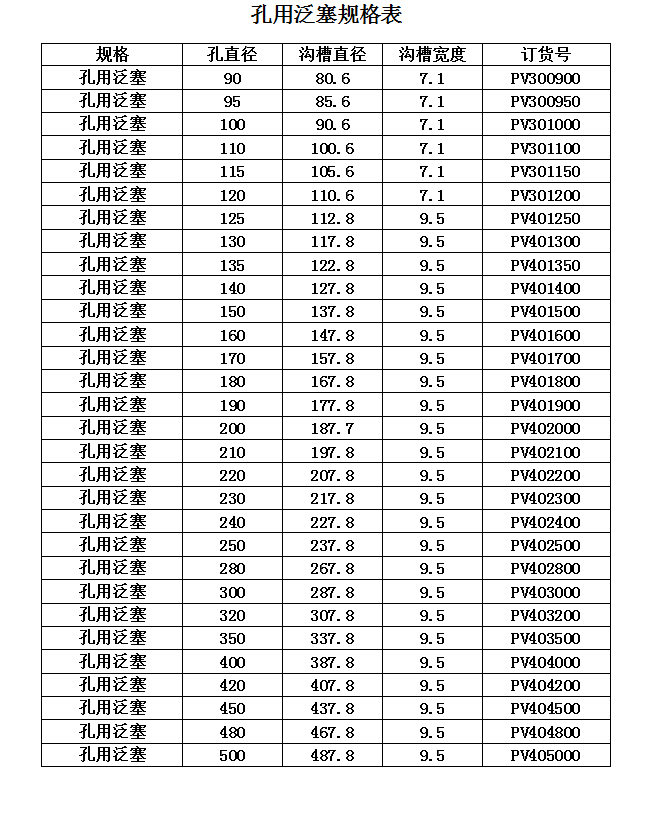

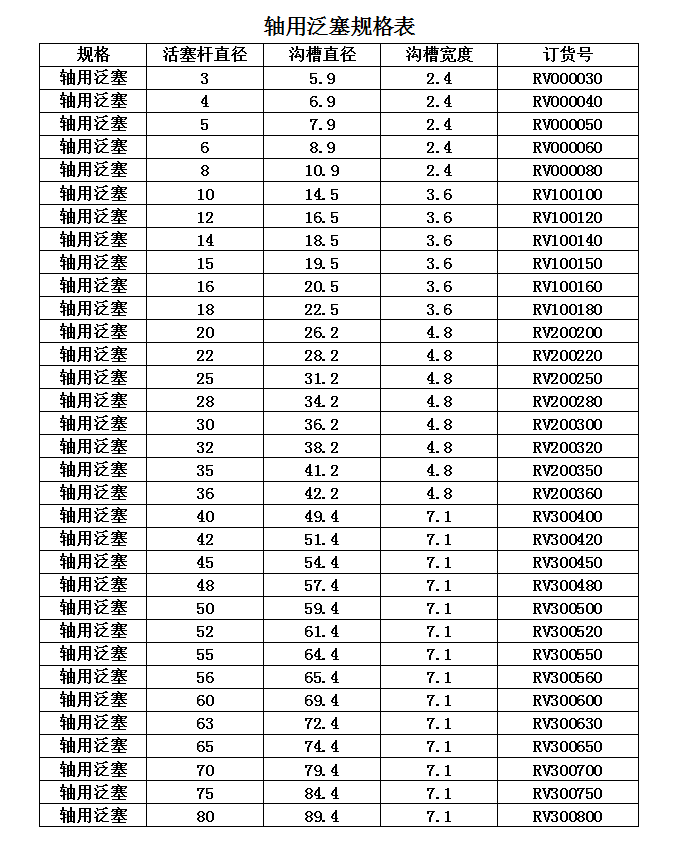

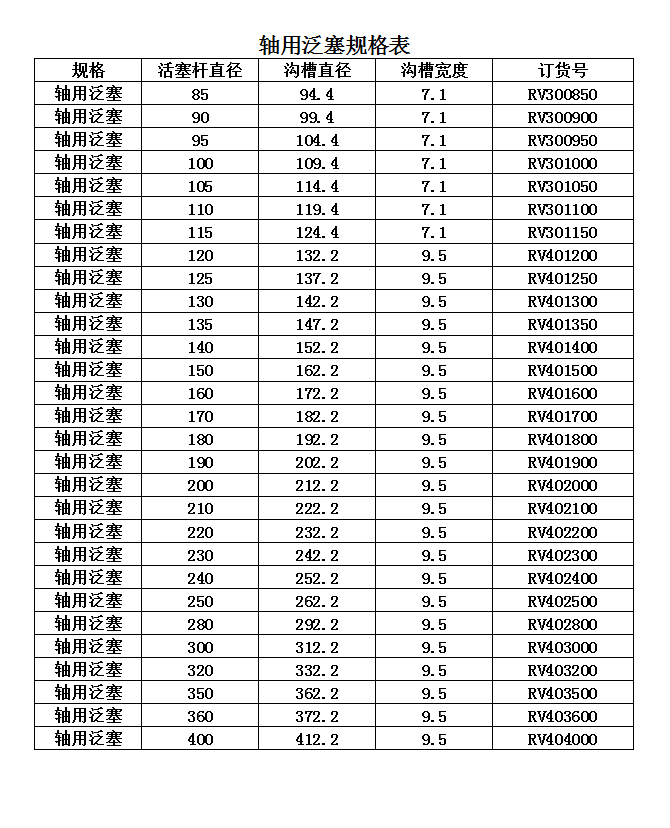

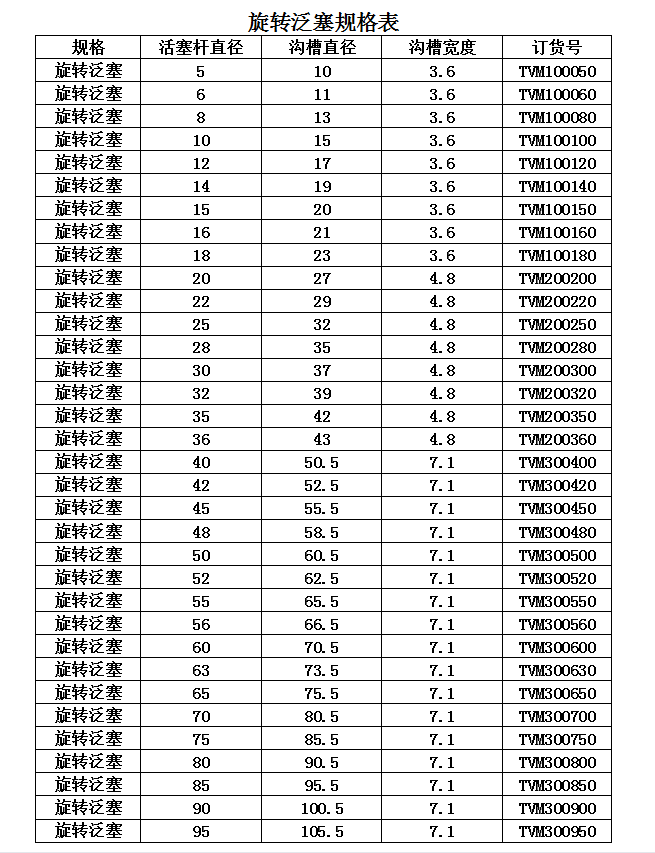

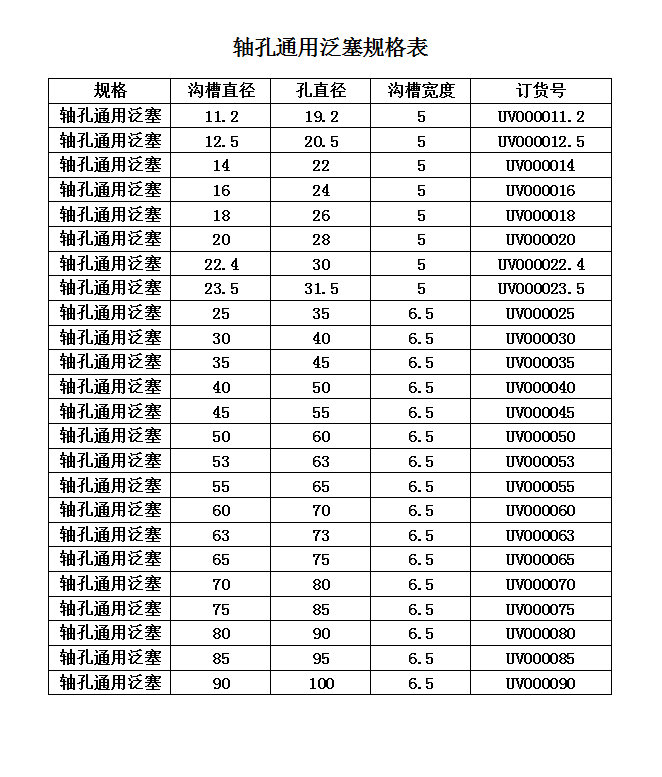

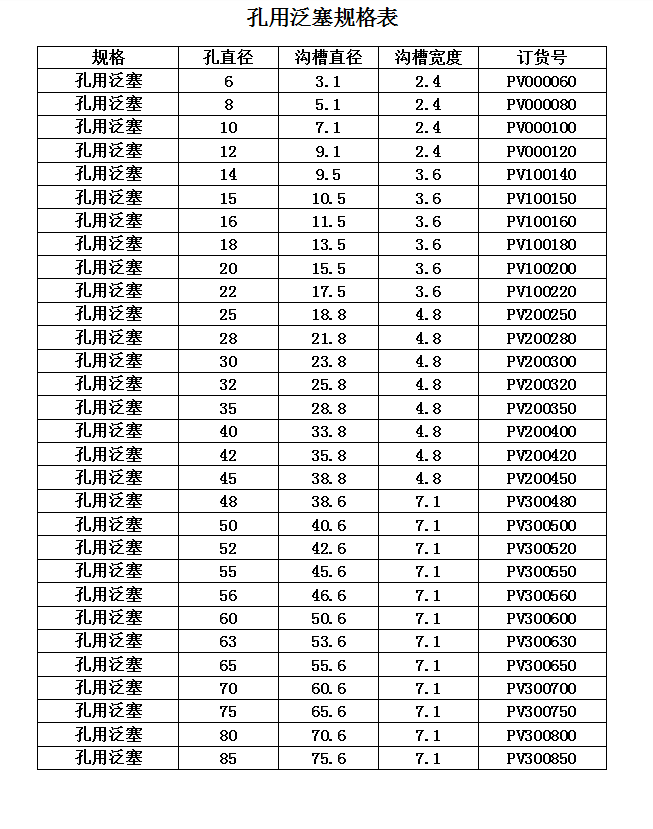

Product specification
