STd Hydraulic Rod seal

Instruction

  The Steseal is generally composed of a rubber O ring and PTFE ring.The
O-ring is the force application element, which provides sufficient sealing
force and compensates for the PTFE ring.Seal for hydraulic cylinder piston
rod.Stone seal is a single acting seal, divided into ster seal for piston and
Scott seal for piston rod.Steseal has the advantages of low friction force,
no crawling, small starting force, high pressure resistance and simple groove
structure.The latest model is type 2K special seal, the material composition
of special seal ring and O ring (butylene fine rubber or fluorine glue).


Working condition

Seal of piston in reciprocating high pressure cylinder in combination with O-ring

Scope of application: various engineering machinery, general machinery hydraulic cylinder
material: PTFE bronze composite
working temperature: -54℃ ~ + 130℃
working pressure: ≤ 63MPa
working medium: hydraulic oil, water, emulsion

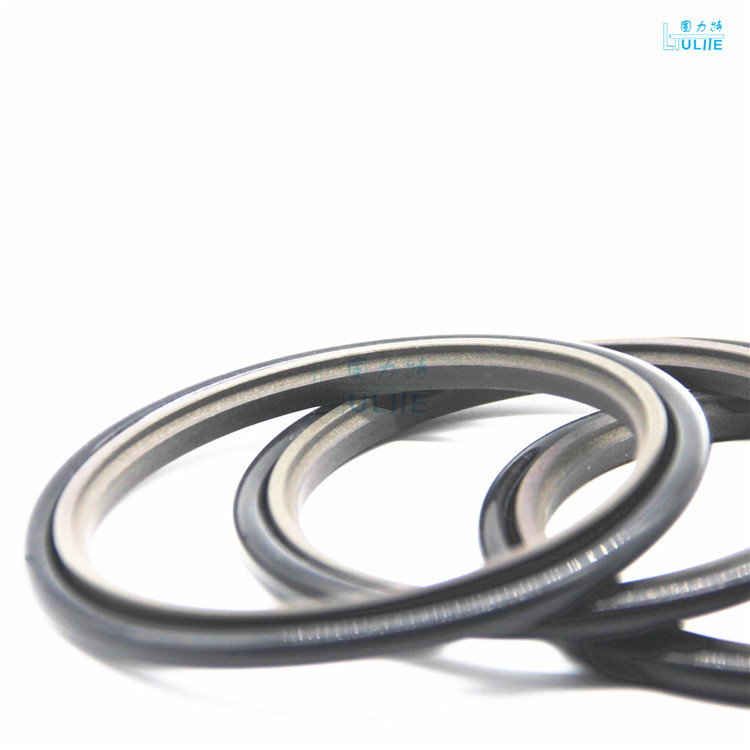

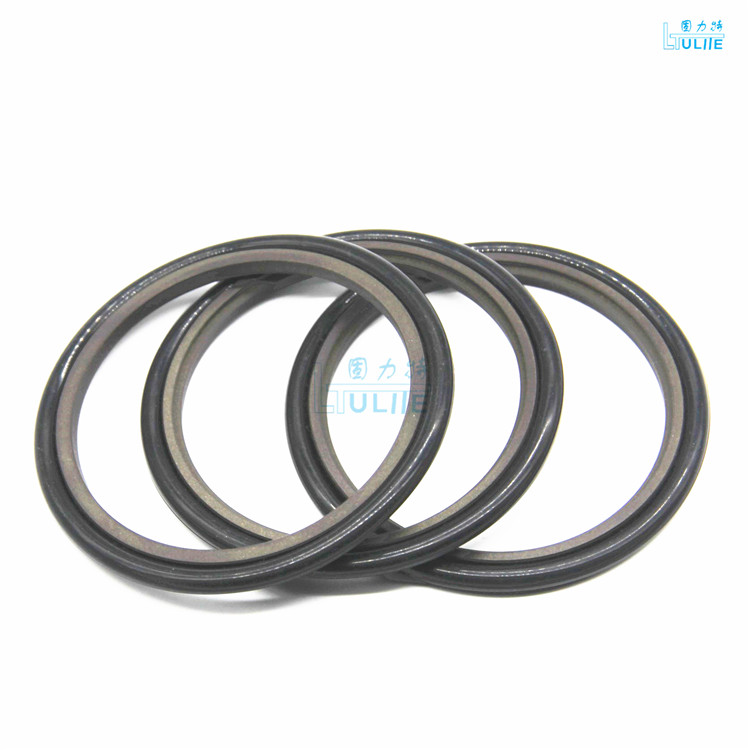

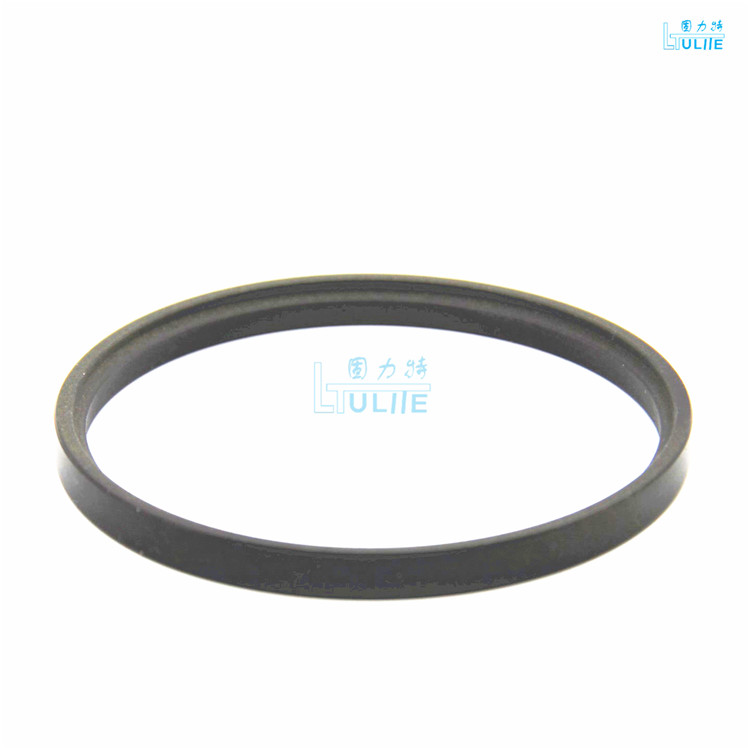

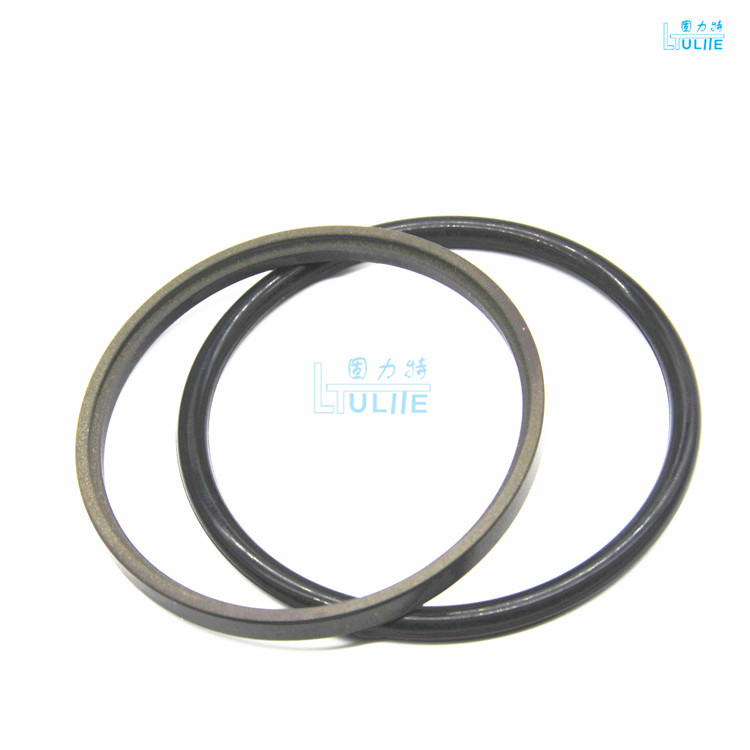

Product photos

Product specification
