UHS Hydraulic PU Rod and Piston seal

Instruction

The UHS type has a narrow section and is a symmetrical type U sealing ring
as high as the inner and outer lips.It can be easily loaded into the integral
composition.Due to the narrow section, UHS is generally used in hydraulic
cylinders with less pressure.If rings with inner diameter less than 14, it is
recommended for you to design an open groove for easy installation.

Material: polyurethane TPU, CPU

Temperature: -20℃ - - + 80℃

Medium: oil-based hydraulic oil and emulsion, not applicable to environment
-friendly hydraulic oil (biological oil)

Pressure: ≤ 20.6MPa

Product use: Seal of piston and piston rod in reciprocating motion (universal
shaft hole) in the hydraulic cylinder.

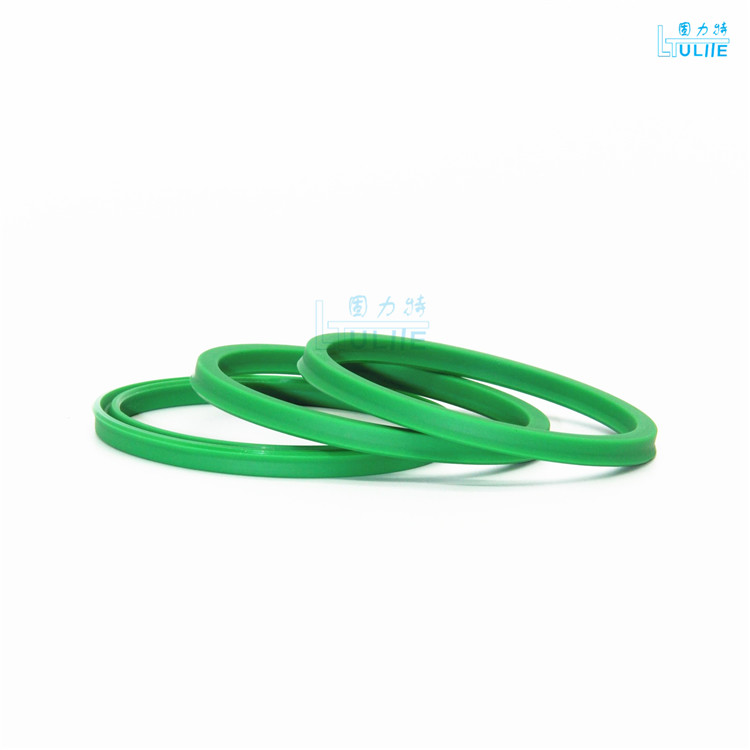

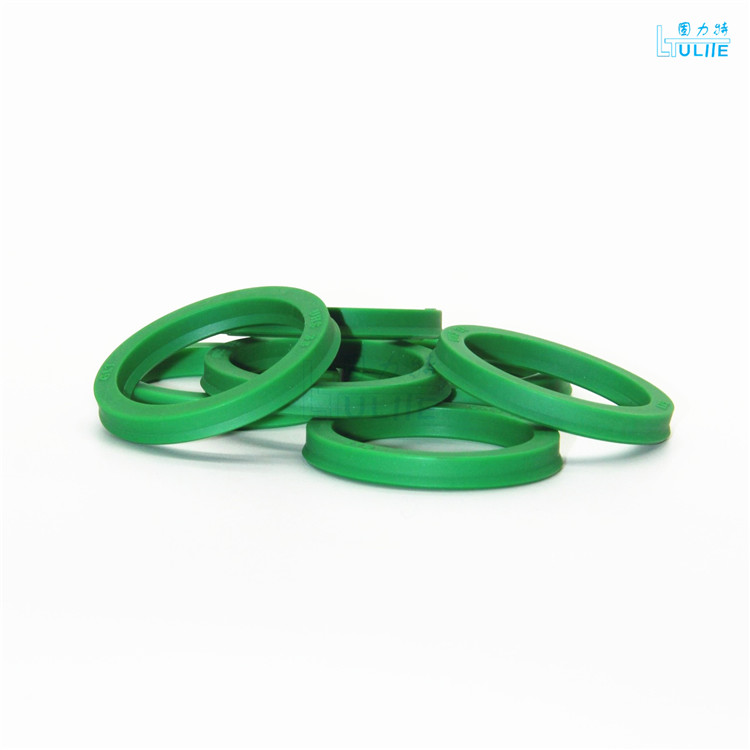

Product photos

Product specification
